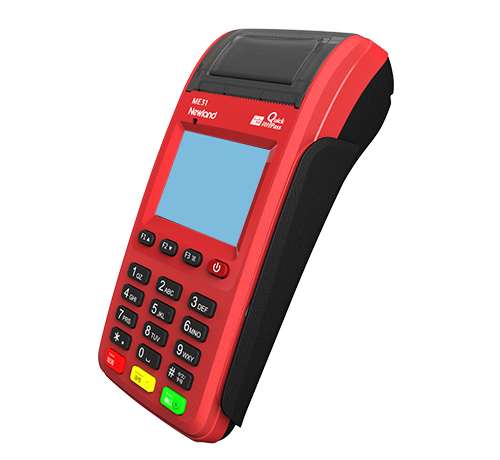

Product name 2
Product details
CPU | 32-Bit ARM11 High Performance Security CPU |
Memory | 128MB flash, 64MB RAM |
| keyboard | 10 number keys, 9 function keys |
show | 2.4-Inch color screen, 320 * 240 resolution; optional color touch screen, support electronic signature |
Magnetic card reader | Support 1/2/3 track bidirectional card reading, in line with ISO7810, ISO7811, ISO7813 specifications |
IC card reader | 1, support EMV, read and write memory and CPU card |
SAM card reader | Standard 1, in line with EMV, PBOC3.0, ISO7816 specifications |
contactless card reader | Optional 1 contactless card reader, supports ISO/IEC14443Type A/B, Mifare1 cards, and has passed QPBOC certification |
barcode reader | Optional one-dimensional and two-dimensional scanning head |
printer | Tell the thermal printer that the roll diameter is 40mm. |
communication | Standard GPRS wireless communication, optional WiFi, Bluetooth |
physical interface | 1 Micro-USB port |
| power supply | Input: 100~ 240V/0.2A 50/60Hz; Output: 5.0V/1.0A adapter |
Battery | 3.6V, 2200mAh large capacity |
external dimensions | 174.6mm(L) * 80.0mm(W) * 55.6mm(H) |
Environmental requirements | Working temperature: 0 ℃~ 40 ℃ Storage temperature: -20 ℃~ 60 ℃ Relative humidity: 5% to 95% (non-condensing) |
certification | PCI4.X PBOC3.0 Level 1&2 QPBOC3.0 Level 1&2 EMV4.3 Level 1&2 UnionPay card acceptance end point product safety certification |
